Advanced Sintering

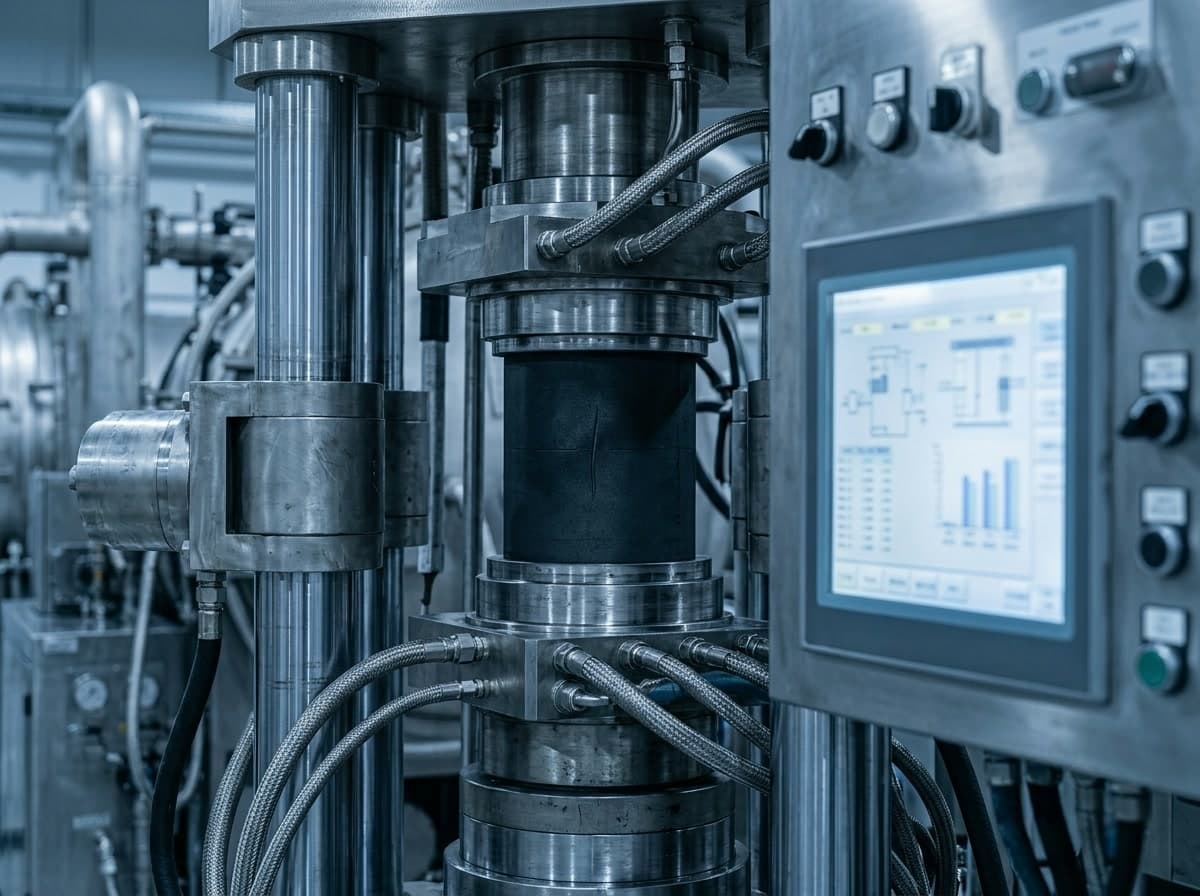

Spark Plasma Sintering (SPS)
Rapid densification using pulsed current and axial pressure at lower temperatures with fine-grained microstructures.
What This Process Solves
Rapid densification using pulsed current and axial pressure at lower temperatures with fine-grained microstructures.
Excellent temperature uniformity
Fast heating and cooling
Short sintering time
Controllable microstructure
Energy saving
Suitable Materials & Applications
High-performance tool materials
- Ultra-fine WC cemented carbide
- WC/cBN composite tools
- Pure WC ceramic tools
Magnetic materials
- Nd-Fe-B and Sm-Co permanent magnets
- Fe-based nanocrystalline soft magnets
- Ferrites
- Metal-ceramic magnetic composites
Sputtering targets
- Refractory metal targets
- High-purity metal targets
- Oxide ceramic targets
- Magnetic ceramic targets
Advanced material extensions
- Functionally graded materials
- Nitride and carbide ceramics
- High-purity metal billets
- Amorphous and nanocrystalline alloys
Evaluation Boundary
Final feasibility depends on material composition, geometry, atmosphere window, thermal profile, target performance, and downstream testing requirements. For immature formulas or complex dissimilar joining, small-sample validation is recommended first.
Available Equipment & Parameters
S2 SPS Spark Plasma Sintering Furnace
Advanced Sintering Technology Center / Laboratory-grade
- Sample size
- Φ30-50 mm
- Mechanical pressure
- 10 T
- Press stroke
- 100 mm
- Heating method
- Pulsed DC power supply
- Ultimate vacuum
- 6.7×10⁻³Pa
- Maximum temperature
- 2400°C
S4 SPS Spark Plasma Sintering Furnace
Advanced Sintering Technology Center / Laboratory-grade
- Sample size
- Φ120 mm
- Mechanical pressure
- 50 T
- Press stroke
- 100 mm
- Heating method
- Pulsed DC power supply
- Ultimate vacuum
- 5 Pa
- Maximum temperature
- 2200°C
S-300 SPS Spark Plasma Sintering Furnace
Engineering Center / Industrial-grade
- Sample size
- Φ300 mm
- Effective working area
- Φ400×800 mm
- Mechanical pressure
- 300 T
- Press stroke
- 200 mm
- Heating method
- Pulsed DC power supply
- Vacuum level
- 5 Pa
- Working temperature
- 2200°C
Request a Spark Plasma Sintering (SPS) process review
Share drawings, material grade, size, temperature window, and performance targets for first-pass engineering evaluation.
