Aerospace alloys
- TC4, TC11, and TA15 titanium alloys
- Inconel 718 and 625 superalloys
Advanced Sintering

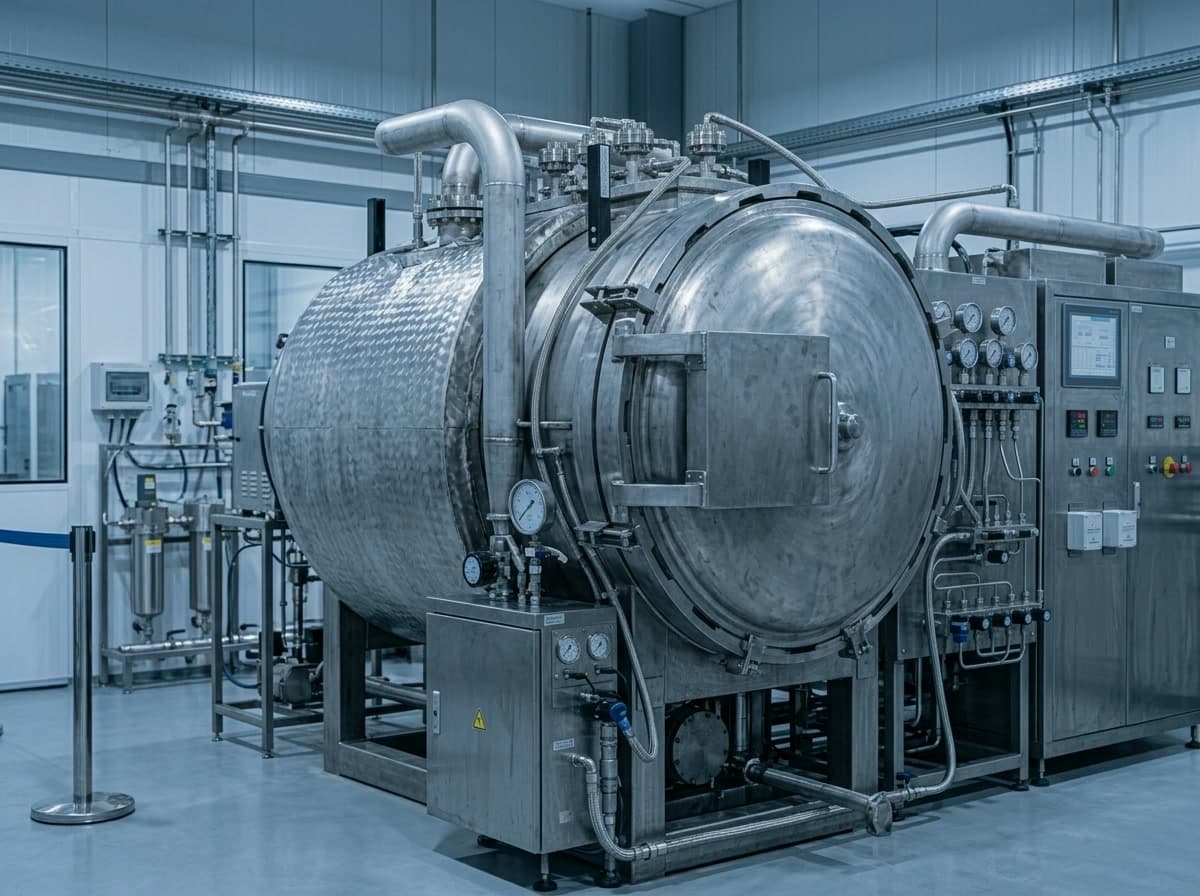

Hot Isostatic Pressing (HIP)
Isotropic high-pressure densification eliminating internal porosity and defects.
What This Process Solves
Isotropic high-pressure densification eliminating internal porosity and defects.
Optimized design
Good uniformity
Fast heating
High pressure accuracy
High safety
Suitable Materials & Applications
Advanced ceramics
- Alumina, zirconia, silicon nitride, and transparent ceramics
Superhard tools
- WC-Co cemented carbide
- PCD
- CBN
3D-printed parts
- Titanium, stainless steel, and aluminum alloy additive-manufactured parts
Powder metallurgy alloys
- Tungsten, molybdenum, and copper-based high-density alloys
Evaluation Boundary
Final feasibility depends on material composition, geometry, atmosphere window, thermal profile, target performance, and downstream testing requirements. For immature formulas or complex dissimilar joining, small-sample validation is recommended first.
Available Equipment & Parameters
I2CC20 Hot Isostatic Press
Advanced Sintering Technology Center / Laboratory-grade
- Chamber size
- Φ200×250 mm
- Gas pressure
- 200 MPa
- Heating element
- Carbon-carbon
- Ultimate vacuum
- 10 Pa
- Maximum temperature
- 2000°C
- Operating environment
- High-purity argon, 800-2000°C, 100-200 MPa
- Maximum load
- 50 kg
Request a Hot Isostatic Pressing (HIP) process review
Share drawings, material grade, size, temperature window, and performance targets for first-pass engineering evaluation.
